How the jigsaw works

I bought my first jigsaw in 1998 at a local hardware store in Ohio. Back then, the motor sounded like a lawnmower and the blade wobbled constantly. Today, these tools are much more precise, but the basic mechanics remain exactly the same. You are essentially driving a thin metal blade up and down through a reciprocating motion.

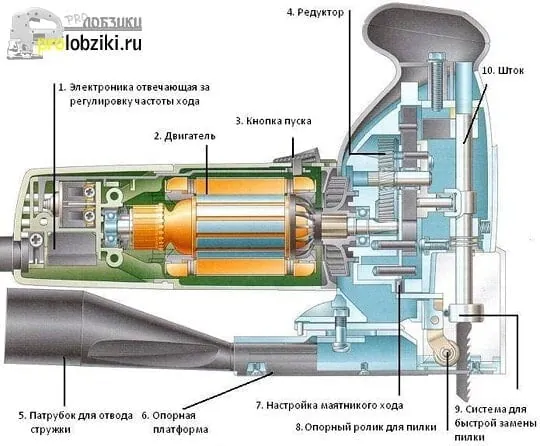

The reciprocating mechanism

The heart of the tool is an eccentric drive shaft inside the motor housing. When you pull the trigger, electricity turns the motor which moves this shaft in a rhythmic pattern. This movement pushes the blade up and down at high speeds to slice through wood fibers.

Speed matters. If you try to cut 18mm Baltic Birch plywood with a slow stroke, the blade will likely wander or snap under the pressure of the material. High-speed settings work best for thin laminates. You need lower speeds when working with thicker hardwoods like oak.

The orbital action is another feature found in most modern mid-range models. This mechanism adds a slight side-to-side motion to every up-and-down stroke. It makes the cutting process faster, but it sacrifices some level of precision during tight turns. Use orbital mode for rough construction cuts and turn it off for fine furniture work.

Blade selection and physics

Blades are not all created equal. You cannot use a coarse wood blade to cut a clean circle in thin MDF without seeing significant splintering on the top surface. The T-shank design is the current industry standard, though some older tools might still require U-shank blades.

Tooth count determines your finish quality. A blade with 10 teeth per inch (TPI) will rip through a 2x4 framing stud in seconds. However, if you want to cut a decorative curve in a piece of walnut, you should reach for a 24 TPI blade instead. More teeth mean smaller chips and a smoother edge.

Blade deflection is the enemy of every woodworker. Because the blades are thin, they tend to bend when they hit a knot or a hard grain line. I have seen many beginners fight the tool by pushing too hard, which only makes the blade bow deeper into the cut. Let the machine do the work.

Managing vibration and stability

Vibration is a physical reality of any reciprocating tool. It travels from the motor through the handle and straight into your wrists after twenty minutes of continuous use. Most professional-grade jigsaws include rubberized grips to dampen this sensation, but they never eliminate it entirely.

Support your workpiece properly. If you are cutting a large sheet of plywood on a workbench, ensure the material is clamped flat so it does not vibrate against the table. A vibrating workpiece causes "chatter," which leaves jagged marks on the edges of your cut.

Check your blade tension frequently. A loose blade will dance around in the orbital path and ruin your line. If you notice the tool shaking violently, stop immediately and check if the blade is seated correctly in the chuck.

Frequently asked questions

Why does my jigsaw leave a rough edge on the bottom?

The blade usually enters from the top of the material. As it moves through the wood, the teeth exit through the bottom surface with significant force. This action often tears the wood fibers instead of slicing them cleanly. Use a "down-cut" blade if you need a perfect finish on the top side of your project.

Can I cut metal with a woodworking jigsaw?

You can, but you must change your hardware. A standard wood blade will dull or break within seconds when it hits steel. Purchase specific metal-cutting blades that have much finer teeth and a different taper. Always wear eye protection because small metal shards fly everywhere during these cuts.

How do I prevent the blade from wandering?

Keep your workpiece clamped tightly to a stable surface. You should also avoid applying excessive downward pressure while cutting through thick sections of timber. If you find the blade bending, switch to a thicker blade with more teeth per inch.
